Product

Application：

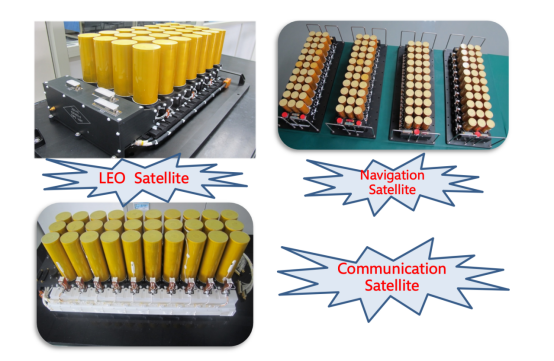

The products  series are suitable for LEO Satellite.

Advantages:

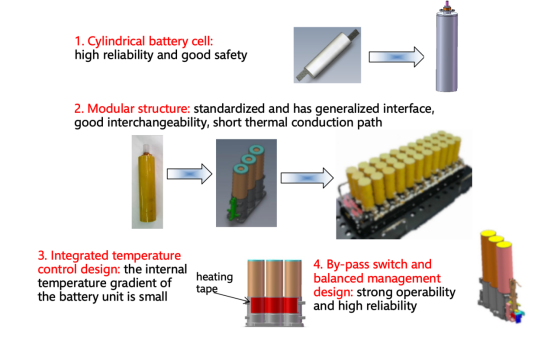

• High nickel NCA/graphite material system;

• High security three-layer composite separator;

• Stainless steel shell, small remanence compared to industrial products;

• Cover design with circuit breaker protection;

• Φ33 small-capacity cells, excellent life characteristics;

• Simple parts and small quantity, suitable for mass production design.

Parameters:

• D /F type cells are connected in series first and then in parallel;

• Single-layer/double-layer structure;

• The electrical connection is welding;

• Independent balance;

• 6P~10P, 7S~12S;
• Low magnetic design
