Product

OVERVIEW

——

Space Solar Cells offer high efficiencies, starting from the 30% class and ending in the high-end cell class of 32%. All solar cells include the latest triple and quadruple junction technology, where III-V layers are grown on a Germanium substrate and the whole product range benefits from many years’ experience on the space market.

SPECIFICATIONS

——

• 30% Triple Junction GaAs Triode CICs :（40mm×80mm）

• Substrate Material ：P-Ge

• Base Material ：GaInP/GaAs/Ge

• Thickness ：150μm±20μm

• Welding Method ：Weld or Solder

• AR-coating ：TiOx/Al2O3

• Coverglass ：KFG120

• Coverglass thickness ：120μm

• CICs Size ：40.1^+0.05 ₀ mm × 80.1^+0.05 ₀ mm

• CICs thickness ：300±25μm

• Interconnector thickness ：30μm

• Average Weight ：≤115mg/cm2

• Bypass Protect ：Si Diode

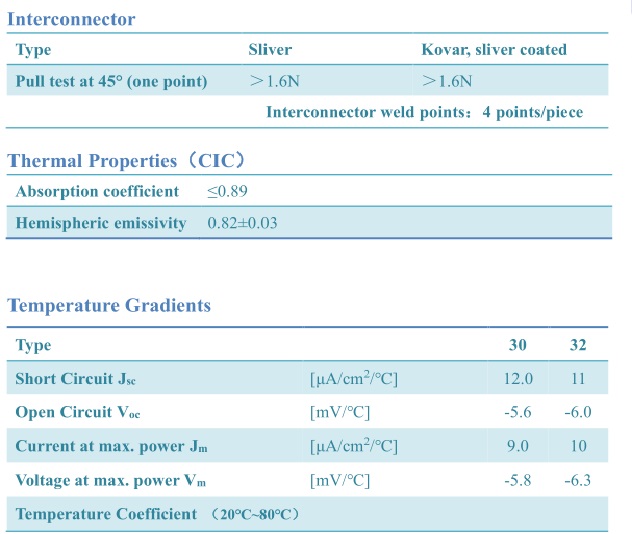

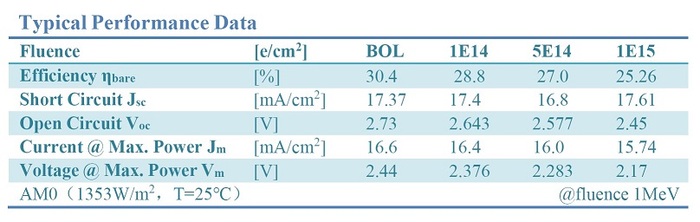

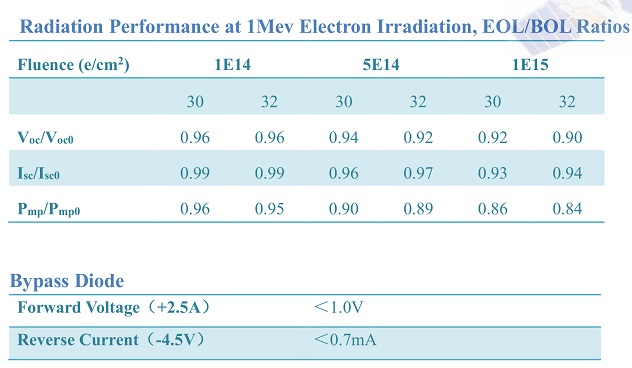

• Refer to the attachment Triple Junction GaAs Solar Cell CICs for other relevant parameters

FAQ

——

1.   About Price:

All of our prices are competitive and negotiable. The price varies depending on the configuration and customization complexity of your device.

2.   About Sample:

We can provide sample production services for you, but you may provide some fees.

3.   About Payment：After the plan is confirmed, you need to pay us a deposit first, and the factory will start preparing the goods. After the

goods is ready and you pay the balance, we will ship it.

4.   About Delivery:

After the goods manufacturing is completed, we will send you the acceptance video, and you can also come to the site to inspect the equipment.
